Introduction

We are excited to announce Day 0 support for DeepSeek-V3.2-Exp, featuring DeepSeek Sparse Attention (DSA) (paper) designed for long context tasks. In this post, we showcase how to use this model in vLLM and dive deep into the challenges encountered in supporting DSA in vLLM.

In particular, DSA’s lightning indexer along with sparse attention presents challenges in continuous batching and paged attention. For example, we need to handle prefill and decode separately for the indexer module and carefully manage the different cache layouts.

On the performance side, vLLM integrates with the lightning indexer CUDA kernels in DeepGEMM, as well as the new sparse attention kernel in FlashMLA. We are also excited about Blackwell support. In collaboration with NVIDIA, you can run this model directly on B200 and GB200!

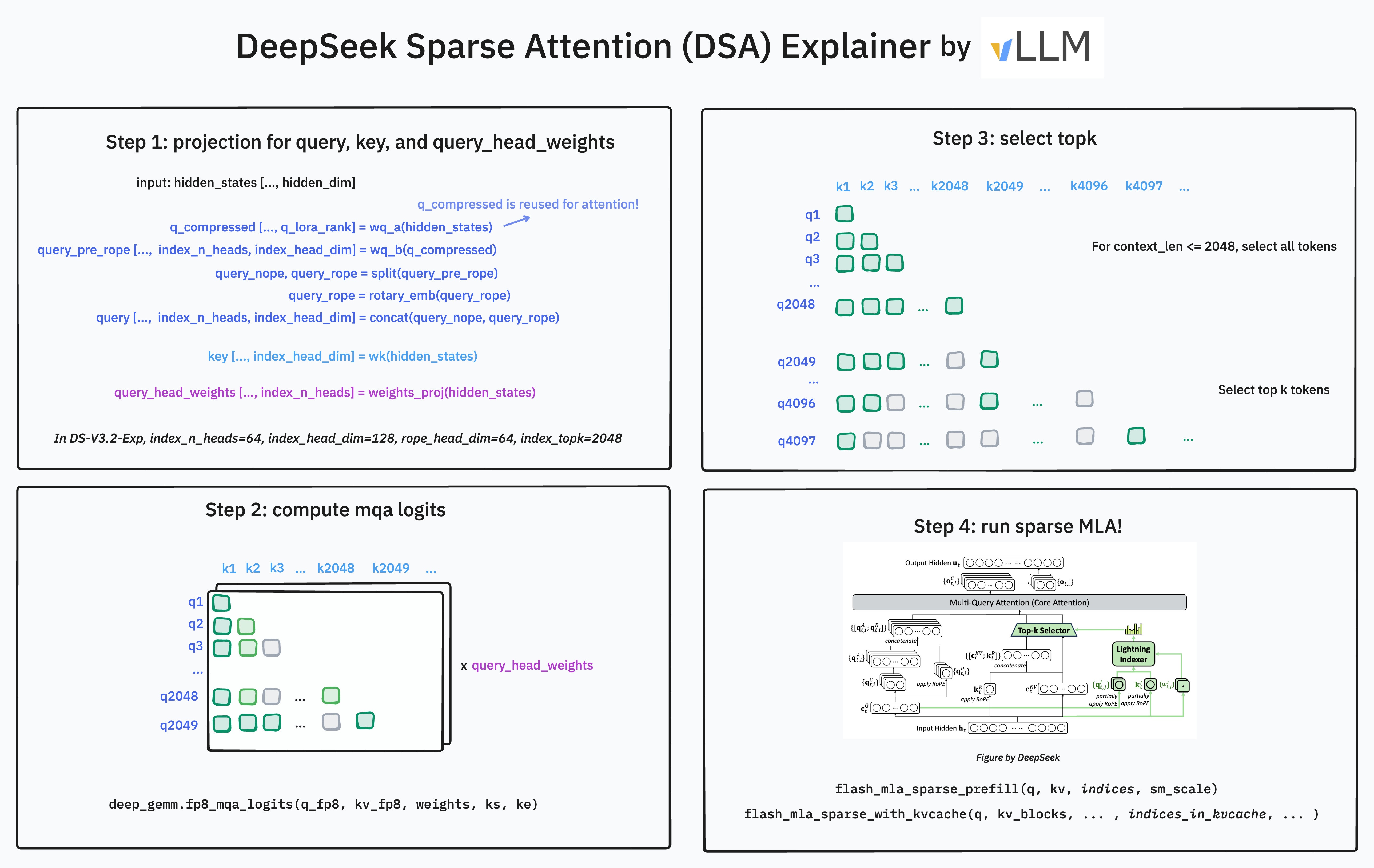

Figure 1: Illustration of DeepSeek Sparse Attention (DSA) Mechanism.

Usage Guide

To get started with DeepSeek 3.2, please follow the installation instructions in the recipes. We are still improving the initial support with this PR. For known issues, see the tracking issue.

Once installed, on 16×H100, 8×H200, or 8×B200, you can run the model with tensor parallelism (expert parallelism has a slight bug we are fixing):

vllm serve deepseek-ai/DeepSeek-V3.2-Exp --tensor-parallel-size 8

To deploy at scale, we look forward to sharing our one-click Kubernetes deployment using llm-d later this week. This approach launches vLLM with PD disaggregation using NIXL, then for each P and D instance, efficiently routes requests to different data parallel ranks. Documentation will be available soon.

Once you start the engine, we recommend testing it with long input or prompts expecting long output. We recommend comparing it with V3.1-Terminus as it is continuously pre-trained on the same data mix.

We are still in the process of verifying vLLM’s implementation against the official accuracy results. On a previous version of the model weights, we matched the expected GSM8K and GPQA-Diamond scores, and showed it is similar to V3.1-Terminus.

Implementation of Top-K Sparse Attention in vLLM

New Cache Entry and Quantization Scheme

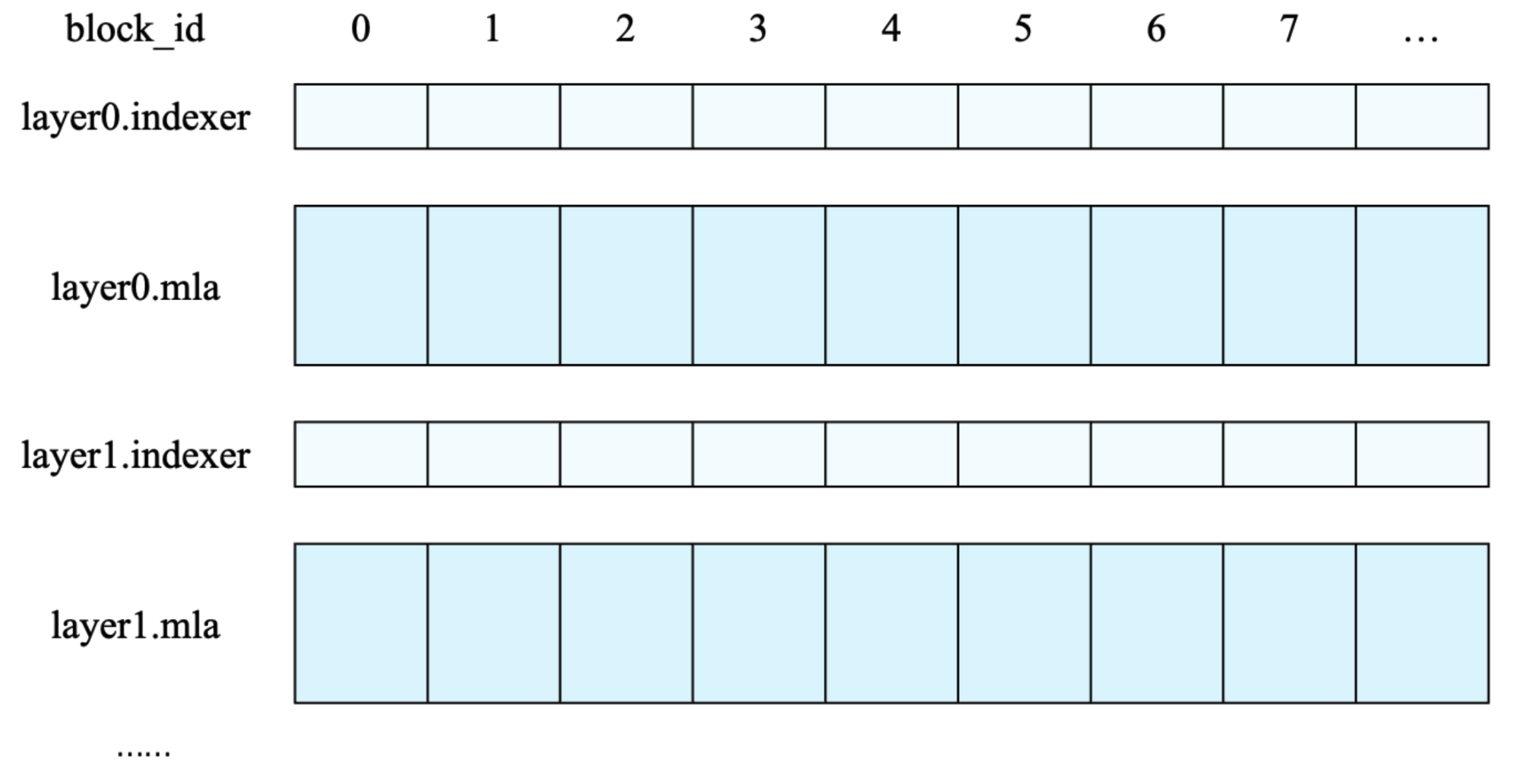

The lightning indexer module has cached K values specifically for indexing. This means that for each token, there is now another K cache used by the indexer. vLLM allocates separate buffers to save the indexer K cache, separate from the MLA K cache.


Another interesting point is the handling of the FP8 KV cache, which this model supports. For MLA, each token’s KV cache is 656 bytes, structured as:

  • First 512 bytes: The “quantized NoPE” part, containing 512 float8_e4m3 values.
  • Next 16 bytes: Scale factors, containing 4 float32 values. The first float32 is the scale for the first 128 float8_e4m3 values, the second for the next 128, and so on.
  • Last 128 bytes: The “RoPE” part, containing 64 bfloat16 values. This part is not quantized for accuracy.

However, for the indexer key cache, it is stored on a per-block basis. This is one of the reasons we only support block size 64 for this model; the other being that FlashMLA is tailored to it as well. The first block_size * head_dim entries contain the value, the rest contain the scaling factor:

x_fp8[ :, : block_size * head_dim] = x_scaled.view(num_blocks, block_size * head_dim).view(dtype=torch.uint8)
x_fp8[ :, block_size * head_dim :] = scales.view(num_blocks, block_size).view(dtype=torch.uint8)

In the indexer, the cache for one token is not stored contiguously.

New Computation with Masking

For each new query token, it now passes through the indexer to compute the top 2048 tokens to attend to. A query for a token is a tensor of shape (h, d), with h being the number of query heads, and d being the head dimension. The context of size n is a 2D tensor of shape (n, d). The computed logits (relevance scores between the query and the context) are a tensor of shape (n, h). Weighting the logits by the head weights of shape (h,), we get a tensor of shape (n,). We need to produce a (2048,) integer tensor of the indices of the top-2048 tokens, with -1 filled for the rest if there are fewer than 2048 tokens.

While it’s straightforward to see how a single query token selects indices to attend to, the batching case is more complicated. Let’s break it down.

The new DeepGemm function is called as follows:

logits = deep_gemm.fp8_mqa_logits(q_fp8, kv_fp8, weights, ks, ke)

For several query tokens (length q) from the same request (i.e., the prefill case), they are stored in a tensor of shape (q, h, d). The context still has n tokens, so the context is still a 2D tensor of shape (n, d). The logits are a tensor of shape (q, n, h). Weighting the logits by the head weights, we get a tensor of shape (q, n). We need to produce a (q, 2048) integer tensor of the indices of the top-2048 tokens. Due to causality, every query token only attends to the tokens before it. We need to mark the start context and the end context for each query token. We use ks to mark the start context, and ke to mark the end context. ks and ke are both (q,)-shaped integer tensors. In this case, ks will be all zeros, and ke will be list(range(n - q, n, 1)).

Finally, let’s consider how to batch multiple requests. We have b requests, each request has q1, q2, ..., qb query tokens, and n1, n2, ..., nb context tokens. The query tokens will be batched into a tensor of shape (q1 + q2 + ... + qb, h, d). The context will be batched into a tensor of shape (n1 + n2 + ... + nb, d). The logits will be batched into a tensor of shape (q1 + q2 + ... + qb, n1 + n2 + ... + nb, h). We need to produce a (q1 + q2 + ... + qb, 2048) integer tensor of the indices of the top-2048 tokens.

We need to mark the start context and the end context for each query token. We use ks to mark the start context, and ke to mark the end context. ks and ke are both (q1 + q2 + ... + qb,)-shaped integer tensors.

In this case, ks will be [0] * q1 + [q1] * q2 + ... + [q1 + q2 + ... + qb] * qb. Here * means repeating the list. ke will be list(range(n1 - q1, n1, 1)) + list(range(n2 - q2, n2, 1)) + ... + list(range(nb - qb, nb, 1)) plus the offset of ks.

After computing the logits, we need to perform the topk operation. However, a clear challenge is that at high batch size with long context, the logits tensor is materialized before running a row-wise topk.

Fusion pass, more kernels, and Blackwell Support

As we started to optimize the performance, we began with a few low-hanging fruit:

  • Top-K can be expressed with a fused kernel for better performance. The TileLang kernel from the DeepSeek team serves as a great reference!
  • We used the quantization of MLA latent and indexer key vectors as they are written to vLLM’s page table. This turns out to be non-trivial, as we previously explained that the quantization scheme is new and different.

We are also excited to announce out-of-the-box Blackwell support for this model. We strive to make the Blackwell platform a first-class citizen in model releases going forward, as its efficiency helps bring out the best performance!

Ongoing Work

We are barely touching the surface of the optimization for DSA and related sparse attention in vLLM. In the coming weeks:

  • We plan to expand the architectures supported beyond Hopper and Blackwell.
  • We will expand the support to other hardwares such as AMD and TPU. With vLLM’s extensible systems, developers can add support for models directly. For example, vllm-ascend and vllm-mlu already support DeepSeek V3.2!
  • We continuously test large-scale wide EP serving and disaggregation.
  • You will soon be able to run an end-to-end RL loop with this model.
  • We will explore the “masked MHA mode for short sequence prefilling” from DeepSeek.
  • In this release, we removed Hadamard transforms as we observed no effect on accuracy. We will investigate further!

Acknowledgements

The following teams in the vLLM community worked on supporting this model:

  • vLLM: Chen Zhang, Yongye Zhu, Kaichao You, Simon Mo, Zhuohan Li
  • Red Hat: Lucas Wilkinson, Matt Bonanni, Wentao Ye, Nicolo Lucchesi, Michael Goin, Robert Shaw, Tyler Michael Smith
  • Meta: Lucia Fang, Xiaozhu Meng, Lu Fang
  • NVIDIA: Ray Wang, Barry Kang, Daniel Campora, Julien Demouth, Siyuan Fu, Zeyu Wang, Pen Chun Li

As the vLLM team, we want to thank the DeepSeek team for open-sourcing this model, techniques, and kernels, as well as DeepSeek leadership for their trust and support in vLLM!
